Bosch Rexroth Variable Pumps

Bosch Rexroth Variable Pumps are world recognised for their energy saving and compact sizes. Rexroth Axial Piston Variable Pumps move with the trend toward into more compact machine tools, which are easily adapted and integrated into any automation architecture supporting multiple configurations and arrangements. Bosch Rexroth Axial Piston Pumps are extremely tough and highly reliable with a long service life lowering the maintenance costs for the user.

VARIABLE PUMPS

In axial piston variable pumps, the flow is proportional to the drive speed and the displacement. The flow can be steplessly changed by adjusting the swivel angle. Axial piston variable pumps are available for hydrostatic drives in open and closed circuits.

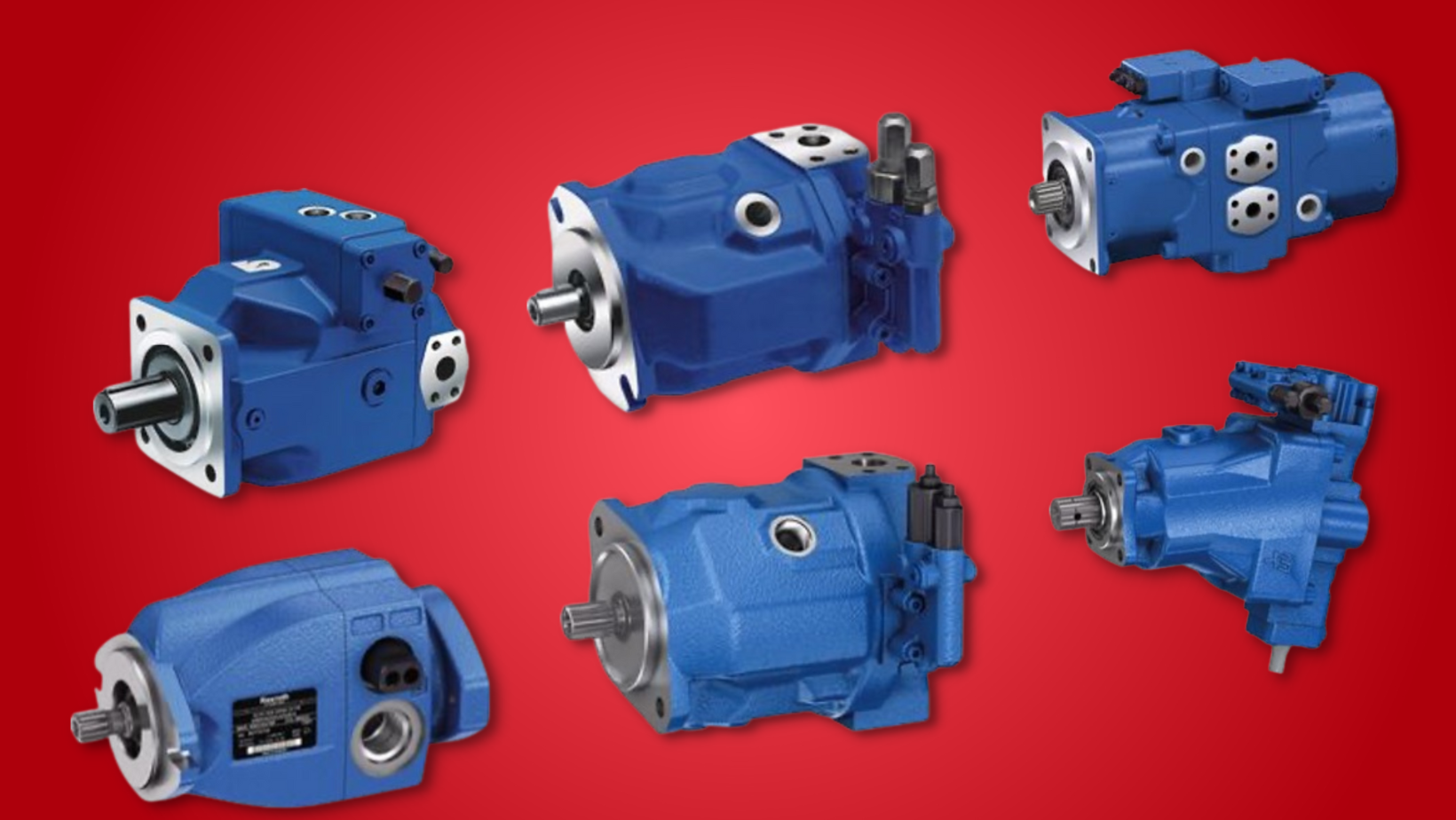

Discover the Bosch Rexroth Variable Pump family.

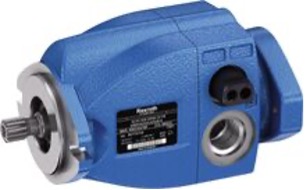

Bosch Rexroth A1VO series 10

• For load-sensing systems in smaller mobile machines

• Size 18  … 35

• Nominal pressure 250 bar

• Maximum pressure 280 bar

• Open circuit


Product Description

A1VO is a variable pump with axial piston transmission in swash plate design for hydrostatic drives in the open circuit. The flow is proportional to the drive speed and the displacement. By adjusting the swash plate, the flow can be steplessly changed.

• Increased service life compared to gear pumps

• Stepless flow variation by adjusting the swashplate angle.

• Low operating noise

• Excellent suction characteristics

• Significant fuel savings up to 15% compared to constant systems

• Optimized efficiency, though same power at less fuel consumption

• Compact design by integrated controller

• High power density

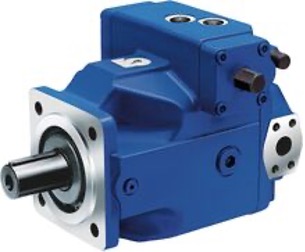

Bosch Rexroth A4VSO Axial piston variable pump

• Robust high pressure pump for industrial applications

• Size 40  … 1000

• Nominal pressure 350 bar

• Maximum pressure 400 bar

• Open circuit

• Metric version


Features

• Axial piston pump in swash plate design for hydrostatic drives in open circuit operation

• The flow is proportional to the input drive speed and dis- placement. By adjusting the swash plate angle it is possible to infinitely vary the output flow.

• Excellent suction characteristics Low noise level

• Long service life Modulardesign

• Short response times Variable through drive options Visual swivel angle indicator Optional mounting position

• Operation on HF-fluids under reduced operational data possible

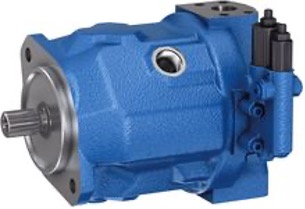

Bosch Rexroth A10VO series 31

• All-purpose medium pressure pump

• Size 18  … 140

• Nominal pressure 280 bar

• Maximum pressure 350 bar


Features

• Variable pump in axial piston swashplate design for hydro- static drives in an open circuit

• Flow is proportional to the drive speed and displacement.

• The flow can be steplessly varied by adjustment of the swashplate angle.

• Hydrostatic unloading of the cradle bearings

• Port for measurement sensor on high pressure port 12 for size 180 or port plate 22

• Approved for high speeds

• Low noise level

• Increased functional reliability

• Favorable power/weight ratio

• Universal through drive for size 180

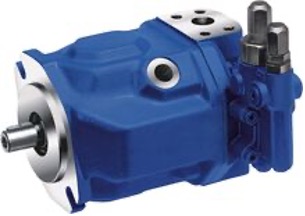

Bosch Rexroth A10VSO series 31

A10VSO is a variable pump with axial piston transmission in swash plate design for hydrostatic drives in the open circuit. The flow is proportional to the drive speed and the displacement. By adjusting the swash plate, the flow can be steplessly changed.

• Excellent suction characteristics

• Long service life

• Controls with short response times

• Low operating noise

• 2 drain ports


Features

• All-purpose medium pressure pump

• Size 18  … 140

• Nominal pressure 280 bar

• Maximum pressure 350 bar

• Open circuit

• Metric version

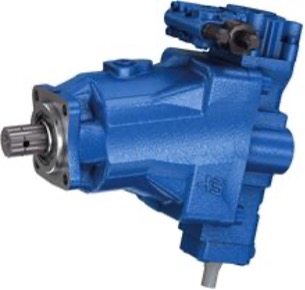

Bosch Rexroth A18VO series 11

• High pressure pump for applications in commercial vehicles

• Size 55  … 107

• Nominal pressure 350 bar

• Maximum pressure 400 bar

• Open circuit


Product Description

A18VO is a variable pump with axial tapered piston transmission in bent axis design for hydrostatic drives in the open circuit. The pump has been especially designed for demanding applications and comfortable controls in working equipment in commercial vehicles, e.g. large HGV loading cranes and superstructures. The flow is proportional to the drive speed and the displacement. By adjusting the bent axis, the flow can be steplessly changed.

• Flange and shaft designed for direct mounting on the power take-off of commercial vehicles

• Long service life

• Optimized weight by cast aluminum housing

• High total efficiency

• Excellent suction characteristics

• Low operating noise

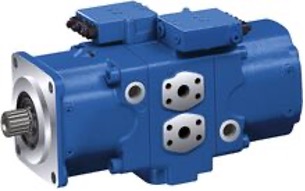

Bosch Rexroth A20VO series 10 Axial piston variable double pump

• Compact back-to-back pump for machines with multi-circuit systems

• Size 60  … 520

• Nominal pressure up to 350 bar

• Maximum pressure up to 400 bar

• Open circuit


Features

• Short-sized pump for confined installation spaces through common port plate for both rotary groups

• One common suction port

• PNP

• The pump consists of well-tried components (A11VO, A10VO or A4VSO)

• Optional with charge pump for the nominal sizes 190 and 260

• Large variety of controls

• Swashplate design
