Bosch Rexroth Directional Spool Valves, direct operated with solenoid actuation WE. The Bosch Rexroth Valve type WE6 and WE10 is a direct operated directional spool valve with solenoid actuation. It controls start, stop and direction of the flow. Directional spool valves connect or isolate the connection, by moving a control spool within a housing bore.

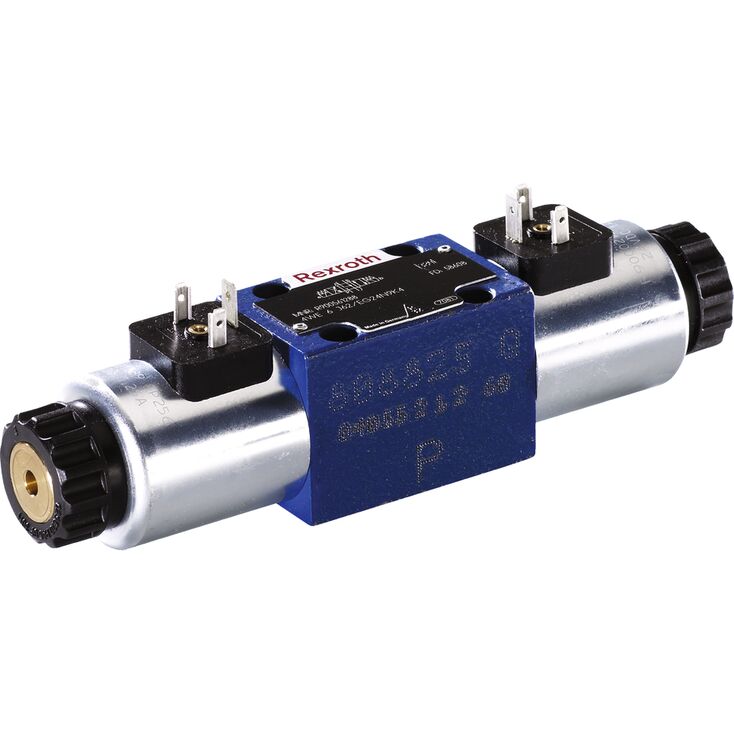

BOSCH REXROTH WE6 CETOP 3 VALVES
VHS Hydraulic Components supplies the following Bosch Rexroth CETOP 3 Directional Spool Valves:
WE6 Size 6:
Component series 6X
Maximum operating pressure 350 bar
Maximum flow (DC) 80 l/min
Maximum flow (AC) 60 l/min
Key features of the Bosch Rexroth CETOP 3 Directional Spool Valve (direct operated with solenoid actuation WE) include:
4/3-, 4/2- or 3/2-way version
High-power solenoid
Porting pattern according to ISO 4401
Wet-pin DC or AC solenoids with detachable coil
The coil can be changed without having to open the pressure-tight chamber
Spool positioning monitoring
BOSCH REXROTH WE10 CETOP 5 VALVES
VHS Hydraulic Components supplies the following Bosch Rexroth CETOP 5 Directional Spool Valves:
WE10 Size 10:
Component Series 5X
Maximum operating pressure 350 bar
Maximum flow 150 I/min
Key features of the Bosch Rexroth CETOP 5 Directional Spool Valve (direct operated with solenoid actuation WE) include:
4/3-, 4/2- or 3/2-way version
High-power solenoid
Porting pattern according to ISO 4401
Wet-pin DC Solenoids with detachable coil
The coil can be changed without having to open the pressure-tight chamber
Central connection possible via doubling mating connector
