PTO’s

PTO stands for "Power Take-Off" in the context of hydraulics and mechanical systems. It's a mechanical device that transfers power from an engine (typically an internal combustion engine) to another mechanical component, often in a different machine or system. The power is usually transferred via a rotating shaft.

In the context of hydraulics, a PTO can be used to provide power to hydraulic pumps, allowing them to generate hydraulic pressure that drives various hydraulic components and systems. This is commonly found in vehicles and machinery where a single engine powers multiple functions or systems.

Here's how it generally works:

• Power Source: The power source, such as an engine, generates rotational power. This power is often measured in horsepower (HP) and is available in the form of a rotating shaft.

• PTO Unit: The PTO unit is a mechanical component attached to the power source, typically at the rear of a vehicle or machine. It's designed to transmit the rotational power from the power source to external equipment.

• Power Transmission: The PTO unit transfers the rotational power from the power source's shaft to the PTO shaft. This PTO shaft is designed to transfer power to the driven equipment.

• Hydraulic Pump: In hydraulic systems, the driven equipment could be a hydraulic pump. The PTO shaft's rotation is used to drive the hydraulic pump, which generates hydraulic pressure by moving hydraulic fluid. This pressure can then be used to operate various hydraulic cylinders, motors, and other components within a hydraulic system.

• Hydraulic System Operation: The hydraulic pressure generated by the pump powers various hydraulic functions, such as lifting and lowering equipment, moving hydraulic cylinders, rotating motors, and more.


PTOs are commonly used in various industries, including agriculture, construction, transportation, and industrial machinery. They provide a flexible and efficient way to transfer power from a single source to multiple components or systems, allowing for the simultaneous operation of different functions without the need for separate power sources.

It's important to note that PTOs come in different designs and types, such as mechanical, hydraulic, and electric, to accommodate various applications and requirements.

The Mechanics and Application of Hydraulic PTOs

What is a Hydraulic PTO? A Hydraulic Power Take-Off (PTO) is a mechanical device designed to harness the rotational power generated by an engine and transfer it to auxiliary equipment. This auxiliary equipment can be anything from hydraulic pumps, generators, compressors, or other systems requiring mechanical power. Essentially, a hydraulic PTO serves as a versatile link between the prime mover (often an engine) and the equipment that needs power to function.

Examples of Hydraulic PTOs in Action:

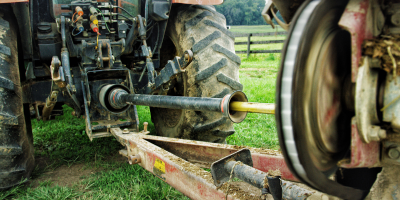

1. Agriculture: Imagine a tractor equipped with a hydraulic PTO. When engaged, the PTO transfers power to various agricultural implements such as mowers, tillers, and balers, enabling efficient farming operations.

2. Construction: In the construction industry, hydraulic PTOs are employed in heavy machinery like excavators and loaders. These PTOs drive hydraulic pumps that power hydraulic cylinders, allowing precise control over digging and lifting operations.

3. Transportation: Many trucks use hydraulic PTOs to drive hydraulic pumps that operate the loading and unloading mechanisms, making it easier to transport goods while optimising time and labour.

4. Emergency Services: Fire engines and rescue vehicles often rely on hydraulic PTOs to drive equipment like hydraulic rescue tools ("Jaws of Life") and aerial platforms, ensuring swift and efficient responses in emergencies.

Enhancing PTO Functionality with Accessories

Exploring PTO Accessories: Hydraulic PTOs can be further optimised with various accessories to enhance their functionality and adaptability. Some common accessories include:

1. PTO Control Units: These units provide operators with convenient and precise control over the engagement and disengagement of the PTO. They help prevent sudden jerks and ensure smooth power transfer.

2. Hydraulic Pumps: PTO-driven hydraulic pumps are at the heart of many hydraulic systems. They convert the rotational power from the PTO into hydraulic pressure, allowing for the operation of hydraulic cylinders, motors, and other components.

3. Shaft Extensions and Adapters: These accessories enable compatibility between different equipment and PTO shaft sizes, ensuring seamless power transfer regardless of equipment variations.




VHS Hydraulic Components is a Dana Brevini UK distributor, We supply HYDR-APP PTO Gear Boxes, HYDR-APP OT Gear Pumps, HYDR-APP Electromagnetic Clutches, HYDR-APP Mechanical Clutches and HYDR-APP Bearing Supports.

Read our blog on the below link for in-depth details of our Hydr-App Dana Brevini agricultural PTO Gearboxes.

https://www.hydraulic-components.net/news/hydraulic-app-dana-brevini-agricultural-pto-gearboxes

Conclusion: The Power and Versatility of Hydraulic PTOs

These ingenious devices bridge the gap between engines and auxiliary equipment, allowing for an array of operations across industries. From agriculture to construction, transportation to emergency services, hydraulic PTOs enable machines to transform potential power into tangible action. As technology advances and industries continue to evolve, the role of hydraulic PTOs will remain integral, propelling us into a future where efficiency and innovation reign.

To enquire about all our Brevini products, please contact VHS Hydraulic Components on: 0114 276 4430   / E: info@www.hydraulic-components.net or visit our website at: https://www.hydraulic-components.net/
