What Do You Want To Remote?

The Scanreco Radio Remote Control Systems are renowned for their ease of operation, unrivalled reliability, and flexibility. As a result, these systems are now adopted around the world by some of the leading manufacturers of lorry loader cranes, forestry machines, mining, and general plant equipment. Scanreco Radio Remote Control Systems are varied and can be used for all types of applications with options to suit your specific requirements.

Discover Scanreco Remote Solutions for your Industry

CONSTRUCTION

There are many safety advantages to radio controlling machines within construction. For example, the operator can control equipment from a safe place and can supervise while standing on the side. Add to this better protection from noise and vibration. Other benefits include increased user-friendliness, less operator fatigue and increased efficiency and productivity.

Scanreco applications that can be remote controlled in construction include:

• Truck cranes

• Loader cranes

• Drilling rigs

• Crushers

• Concrete pumps

• Demolition robots

• Rollers

• Concrete Saws

• Concrete grinding

• Vibrator plates

Scanreco advantages for the construction industry:

• Ability to operate equipment from safer grounds.

• Better vantage points for the operator.

• Reduced levels of noise or vibration.

• Greater ease of machine operation.

• Less operator fatigue.

• Increased efficiency and productivity.

MINING

Scanreco radio remote controlling presents a number of advantages in the demanding and dangerous environment of the mining industry. The most important is, of course safety, as the operator can control the machine from a safe place. Reliability is also crucial for productivity. Stops are costly and the operator must be able to rely on the remote control working in all situations.

Scanreco applications that can be remote controlled in mining include:

• Drilling rigs

• Crushers

• Rock breaker boom

• Tunnel drilling

Scanreco advantages for the mining industry:

• Ability to operate equipment from safer grounds.

• Reduced levels of noise or vibration.

• Greater ease of machine operation.

• Less operator fatigue.

• Increased efficiency and productivity.

UTILITY VEHICLES

Scanreco remote control can be used in all applications where the operator needs to be able to move freely and stand on the side. It can be used for slope mowers, high pressure and vacuum trucks, tow trucks, garbage trucks, sky lifts and snow plows.

Scanreco applications that can be remote controlled in utility vehicles include:

• Slope mowers

• High pressure and vacuum trucks

• Tow trucks

• Sky lifts

• Garbage trucks

• Snow plows

Scanreco advantages within utility vehicles:

• Greater flexibility for the operator.

• Increased safety.

• Increased productivity.

FORESTRY

The forestry industry is affected by many accidents both during felling and transport. Scanreco remote control plays an important part in increasing safety for forestry workers, while simultaneously while increasing productivity significantly.

Scanreco applications that can be remote controlled in forestry include:

• Forestry winches

• Forwarders

• Stump grinders

• Harvesters

Scanreco advantages for the forestry industry:

• The operator can remote control a machine from a safe place.

• Less risk of operator fatigue.

• Improves the operator’s safety during risky operations.

• Reduces operator stress.

LOAD HANDLING

Scanreco remote control for truck cranes is something Scanreco has done for over 35 years. Our systems help the operator load and unload both quickly and safely, and today we have over 75% of the market for remote control of these applications. We also offer remote control for hooklifts and skip loaders as well as tail lifts for trucks.

Scanreco applications that can be remote controlled in load handling include:

• Truck cranes

• Loader cranes

• Knuckleboom cranes

• Hooklifts and skip loaders

• Tail lifts

Scanreco advantages within load handling:

• More effective when the operator is present at loading and unloading.

• The operator always has full control – No hidden lifts.

• Good ergonomics.

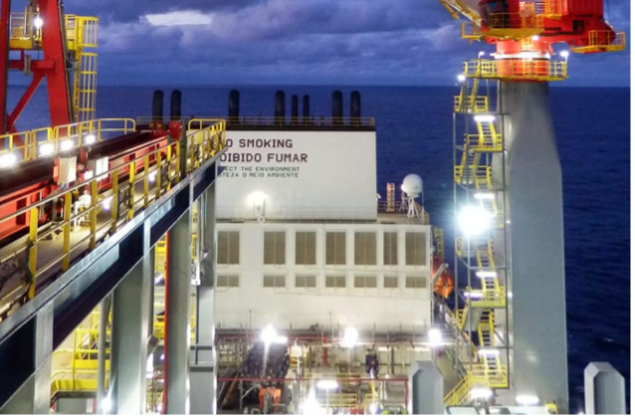

MARITIME

• Live fish pumps

• Aqua pumps

• Cranes, Winches, Davits

• Mooring equipment

• Ramps

• Movable deck floors… and more

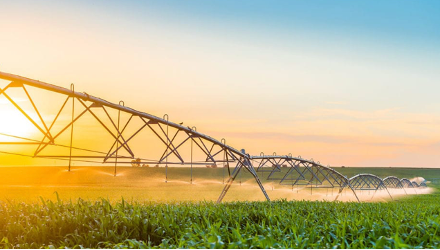

AGRICULTURE

• Interrogation systems

• Semi-autonomous machines wine farming

• Attachments

• Rodeo gates

• Chicken coup cleaners… and more

Why choose Scanreco to help you remote?

As shown above we can help with your specific needs within your specific industry.

• Are you starting from zero and looking for help that can provide you with a safe, reliable and rugged remote control system?

• Do you have an existing remote/radio configuration, but you need your own design, function (software and hardware) and/or special layout on the controls.

• Do you have Canbus and a controller? We can adapt to every one of them. Direct control is taken care of from our receivers.

Discover the Scanreco Remote Control Product Range available from VHS Hydraulic Components:

Scanreco Mini Transmitter

Compact but packed with functionality

The Scanreco Mini is a compact and versatile transmitter that can easily be customised to suit your requirements. With its modular design, the Scanreco Mini Transmitter can accommodate 1-6 linear levers or 1–3 joysticks as well as several pushbuttons and switches. Despite the compact format, all controls are sized and positioned to support daily usage for many hours without causing operator fatigue.

The transmitter has a bundle of both standard and optional settings and features to improve the operator experience. The maximum speed of proportional movements can be adjusted using a “turtle/rabbit” toggle switch in five steps. A high performance colour display, a monochrome display or LEDs enable operator feedback from the controlled machine.

Automatic frequency management allows for continuous operation without any interruptions caused by radio interference from other wireless equipment.

The transmitter communicates with the corresponding receiver using a Scanreco protocol and a unique identity code. This guarantees that no other Scanreco transmitter or other product can ever activate the machine unintentionally. The stop function conforms to performance level “d” (PL d) as specified in EN ISO 13849-1, a legally binding standard for safety-critical components of control systems.

The Scanreco Mini Transmitter is designed for heavy-duty use and we know that our customers rely on our ability to deliver functionality they can trust – we call this Never- Stop Technology™ from Scanreco.

Key features of the Scanreco Mini Transmitter include:

• 1–6 linear levers or 1–3 joysticks.

• Various toggle switches, pushbuttons and rotary switches.

• Operator feedback by:

• LEDs (light emitting diodes).

• Monochrome display 2.5" with 128 x 64 px

• Color display 4.3" with 480 x 272 px.

• Stop function in accordance with EN ISO 13849-1 cat. 3, PL d.

• Frequency bands: 433–434, 902–928 MHz & 2.4 GHz (other frequencies available on request).

• Operating range > 100m / > ~ 330 ft.

• Cable control: Standard Length 10 meters / ~ 33 ft.

• Operational temperature: –20°C to +70°C / ~ –4°F to +160°F.

• Protection category: IP65.

• Dimensions: (W x H x D): 290 x 160 x 190 mm / ~ 11.42 x 6.30 x 7.48 in (w/o color display).

• Weight: 1.4–2.2 kg / ~ 3.1–4.8 lbs. including battery.

Scanreco Maxi Transmitter

Engineered for maximum performance

The Maxi is Scanreco’s most advanced and versatile transmitter with room for many control elements as well as function labelling. The ergonomic housing comes in two basic versions: either with linear levers or joysticks. The Scanreco Maxi has a modular design and can easily be adapted to suit your requirements.

The transmitter has a bundle of both standard and optional settings and features to improve the operator experience. The maximum speed of proportional movements can be adjusted using a “turtle/rabbit” toggle switch in five steps. A high performance colour display, a monochrome display or LEDs enable operator feedback from the controlled machine.

Automatic frequency management allows for continuous operation without any interruptions caused by radio interference from other wireless equipment.

The transmitter communicates with the corresponding receiver using a Scanreco protocol and a unique identity code. This guarantees that no other Scanreco transmitter or other product ever can activate the machine unintentionally. The stop function conforms to performance level “d” (PL d) as specified in EN ISO 13849-1, a legally binding standard for safety-critical components of control systems.

The Scanreco Maxi Transmitter is designed for heavy-duty use and we know that our customers rely on our ability to deliver functionality they can trust – we call this Never- Stop Technology™ from Scanreco.

Key features of the Scanreco Maxi Transmitter include:

• 1–8 linear levers or 1–4 joysticks.

• Various toggle switches, pushbuttons and rotary switches.

• Operator feedback by:

• LEDs (light emitting diodes)

• Monochrome display 2.5" with 128 x 64 px

• Color display 4.3” with 480 x 272 px.

• Stop function in accordance with EN ISO 13849-1 cat. 3, PL d.

• Cable control: Standard length 10 meters / ~ 33 ft.

• Frequency bands: 433–434, 902–928 MHz & 2.4 GHz (other frequencies available on request).

• Operating range > 100m / > ~ 330 ft.

• Operational temperature: –20°C to +70°C / ~ –4°F to +160°F.

• Protection category: IP65.

• Dimensions: (W x H x D): 350 x 160 x 190 mm / ~ 13.78 x 6.30 x 7.48 in (w/o color display).

• Weight: 1.9–2.6 kg / ~ 4.2–5.7 lbs. including battery.

Scanreco G2B Receiver (for use with either of the above)

The comprehensive alternative

The Scanreco G2 is a versatile receiver equipped with proportional outputs, digital I/Os as well as CANopen communication. The numerous interface options and flexible software settings make the receiver suitable for all mobile hydraulic applications on the market. The proportional output signals support both current-controlled and voltage-controlled hydraulic valve blocks. If more functions are needed than what can be supported by a single receiver, more receivers can be added in a master/slave configuration to increase the number of outputs.

The Scanreco G2 built-in basic controller has many features that add to the performance and functionality of the controlled crane or machine. The basic controller also reduces the need for external electronic components such as a PLC or relays and diodes.

The receiver can only be activated by its dedicated Scanreco transmitter; no other transmitter or product can ever activate the receiver unintentionally. For maximum security, the receiver is equipped with dual processors that constantly monitor all data and outputs. In the unlikely event of any error or loss of the radio link from the transmitter, all outputs will immediately be shut down.

An important key to the success of the Scanreco professional radio remote control system is the receiver. It is well known for its durability – even in extreme conditions such as shock, vibration and electromagnetic interference. One of the secrets is that it is potted with epoxy to protect it against dust and water in all forms to survive 24/7 the hottest summer in Australia or the coldest mid-winter in north Canada. This is what we call Never-Stop Technology™ from Scanreco.

Key features of the Scanreco G2B Receiver include:

• 8 bi-directional proportional outputs.

• 4 digital outputs (including dump valve).

• 3 digital inputs + 1 configurable digital in or output.

• CANopen interface.

• Stop function in accordance with EN ISO 13849-1 cat. 3, PL d.

• Frequency bands: 433–434, 902–928 MHz & 2.4 GHz (other frequencies available on request).

• Two-way communication.

• Cable control: Standard length 10 meters / ~ 33 ft.

• Supply voltage: 12/24 VDC.

• Operational temperature: –25°C to +70°C / ~ –15°F to +160°F.

• Protection category: IP 65.

• Dimensions (W x H x D): 233 x 205 x 77 mm / ~ 9.17 x 8.07 x 3.03 in (height incl. antenna).

• Weight: 1.2 kg / ~2.6 lbs.

Scanreco Handy 10 Transmitter

Proportional control at the push of a button

The Scanreco Handy is a robust handheld transmitter with innovative proportional pushbuttons. The speed of the controlled motion corresponds directly with the displacement of the button. The infinitely variable speed control enables a higher degree of precision and performance compared to traditional one or two-step buttons. The large pushbuttons are designed to be easily operated even when wearing working gloves. Four proportional functions in dual directions can be controlled simultaneously. A second operational mode allows for further proportional and digital functions to be controlled. Areas for function labelling with text, numbers or symbols are located on top as well as next to each button.

The internal AA standard batteries provide 20 hours of continuous operation. By connecting the charging cable to the Scanreco Handy, the batteries can be fully recharged in approximately two hours. Changing batteries is easily done by the operator without any tools in cases where there is no time to interrupt work for charging.

Automatic frequency management allows for continuous work without any interruptions caused by radio interference from other wireless equipment. The on-site calibration feature allows authorised users to adjust speed settings without any external tools or software.

The transmitter communicates with the corresponding receiver using a Scanreco protocol and a unique identity code. This guarantees that no other Scanreco transmitter or other product ever can activate the machine unintentionally. The stop function conforms to performance level “d” (PL d) as specified in EN ISO 13849-1, a legally binding standard for safety-critical components of control systems.

The Scanreco Handy Transmitter is designed for heavy-duty use and we know that our customers rely on our ability to deliver functionality they can trust – we call this Never-Stop Technology™ from Scanreco.

Key features of Scanreco Handy 10 Transmitter include:

• 10 pushbuttons

• Proportional and digital functionality

• Dual operation modes duplicate the functionality of each button

• Operational and battery status indication by LEDs and a LED display

• Stop function in accordance with EN ISO 13849-1 cat. 3, PL d

• Operational time: 20 hours on a single charge

• Frequency bands: 433-434 or 902-928MHz

• Operating range: > 100m / > ~330 ft.

• Operational temperature: -25°C to +70°C / ~-15°F to +160°F

• Protection category: IP 65

• Dimensions (W x H x D): 76 x 253 x 50 mm / ~2.99 x 9.96 x 1.97 in

• Weight: 0.50 kg / 1.1 lbs. including batteries

VHS Hydraulic Components stock and supply Scanreco Remote Control Systems, including the Scanreco Mini Transmitter, Scanreco Maxi Transmitter, Scanreco G2B Receiver Scanreco Handy 10 Transmitter and Scanreco G4 Receiver. To enquire, please call: 0114 276 4430
