The Walvoil Diverter Valve series offers a spectrum of features tailored to specific operational requirements. Whether it's redirecting hydraulic flow, managing pressure, or optimizing fluid distribution, these valves provide a solution for every hydraulic challenge. Backed by extensive research and a commitment to technological advancement, Walvoil continues to refine and expand its Diverter Valve range to meet evolving industry needs.
VHS Hydraulic Components stock and supply Walvoil Diverter Valves. These products are complementary to the directional control valves to provide a sequence of operations, safety operations and/or an actuator selection.
WALVOIL MONOBLOCK VALVES
Rotary Spool Control
Walvoil DHZ – DH
Mechanical rotating spool control
The Walvoil DHZ series flow diverter connect different circuits by a rotating spool operator. The body is zinc plated.
Ways n.: 3 - 4 - 6 - 8
Max. Pressurebar - (psi): Up to 315 (4600)
Flowl/min - (US gpm) : up to 280 (74)
Operational Type: Mechanical
Walvoil Alternate Spool Control

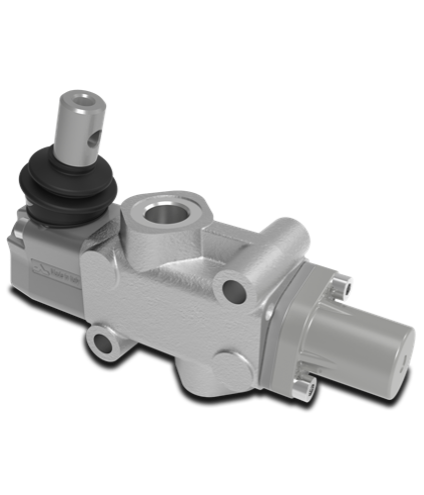

Walvoil DF5 – DFC050
Mechanical spool control monoblock configuration
The Walvoil DF series flow diverters are used to connect several circuits by different way number configuration. Different sizes and operators are available.
Ways n.: 2 - 3 - 6
Max. Pressurebar - (psi): 315 (4600)
Flowl/min - (US gpm): 60 (15,8)
Operational Type: Mechanical

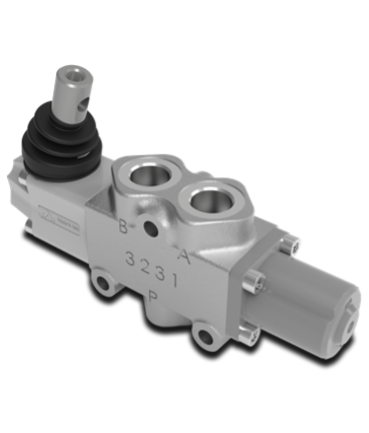

Walvoil DF10 – DFC100
Mechanical spool control monoblock configuration
The Walvoil DF series flow diverters are used to connect several circuits by different way number configuration. Different sizes and operators are available.
Ways n.: 3 - 6
Max. Pressure bar - (psi): 315 (4600)
Flow l/min - (US gpm): 90 (23,8)
Operational Type: Mechanical

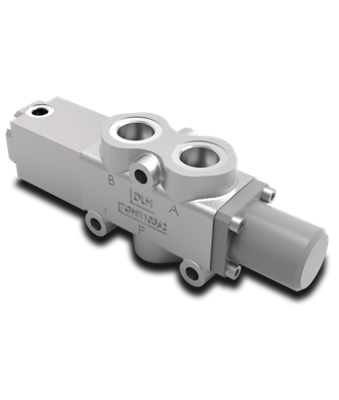

Walvoil DF20
Mechanical spool control monoblock configuration
The Walvoil DF series flow diverters are used to connect several circuits by different way number configuration. Different sizes and operators are available.
Ways n.: 3 - 6
Max. Pressurebar - (psi): 315 (4600)
Flowl/min - (US gpm): 140 (37)
Operational Type: Mechanical
Walvoil DF25
Mechanical spool control monoblock configuration
The Walvoil DF series flow diverters are used to connect several circuits by different way number configuration. Different sizes and operators are available.
Ways n.: 3
Max. Pressure bar - (psi): 315 (4600)
Flow l/min - (US gpm): 280 (74)
Operational Type: Mechanical
WALVOIL SOLENOID SPOOL CONTROL

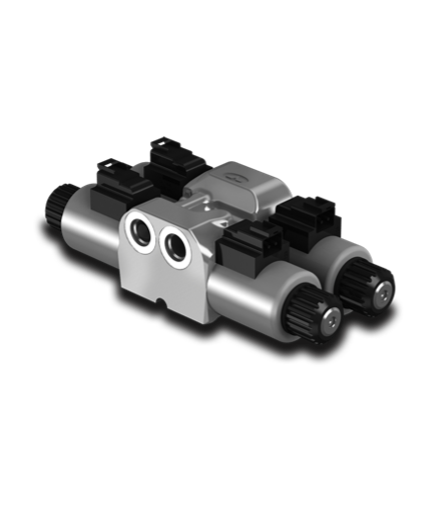

Walvoil DFE085
Monoblock solenoid spool control
The Walvoil DFE series flow diverters with electric control are used to connect several circuits by different way number configuration.
Ways n.: 4
Max. Pressure bar - (psi): 210 (3050)
Flow l/min - (US gpm): 25 (6,6)
Operational Type: Electric
Walvoil DFE052
Monoblock solenoid spool control
The Walvoil DFE series flow diverters are used to connect several circuits by different way number configuration.
Ways n.: 2 - 3 - 6 - 8
Max. Pressurebar - (psi): Up to 315 (4600)
Flowl/min - (US gpm): 60 (15,8)
Operational Type: Electric

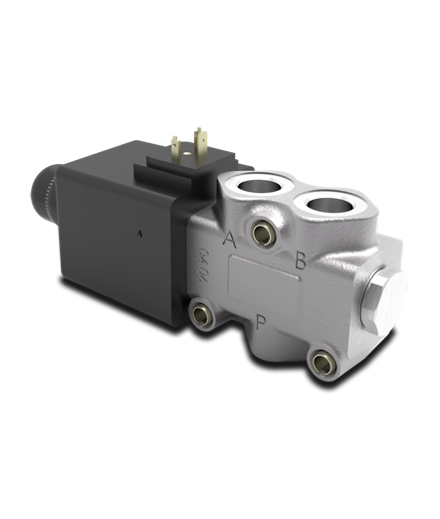

Walvoil DFE10
Monoblock solenoid spool control
The Walvoil DFE series flow diverters are used to connect several circuits by different way number configuration.
Ways n.: 3 - 6
Max. Pressurebar - (psi): Up to 315 (4600)
Flowl/min - (US gpm): 90 (23,8)
Operational Type: Electric
Walvoil DFE20
Monoblock solenoid spool control
The Walvoil DFE series flow diverters are used to connect several circuits by different way number configuration.
Ways n.: 3 - 6
Max. Pressure bar - (psi): Up to 315 (4600)
Flowl/min - (US gpm): 140 (37)
Operational Type: Electric
Walvoil DFE110
Monoblock solenoid spool control
The Walvoil DFE series flow diverters are used to connect several circuits by different way number configuration.
Ways n.: 12
Max. Pressure bar - (psi): Up to 315 (4600)
Flow l/min - (US gpm): 90 (23,8)
Operational Type: Electric
Walvoil DFE141
Monoblock solenoid spool control
The Walvoil DFE series flow diverters are used to connect several circuits by different way number configuration.
Ways n.: 6 - 8
Max. Pressure bar - (psi): 315 (4600)
Flowl/min - (US gpm): 80 (21)
Operational Type: Electric
WALVOIL STACKABLE VALVES
Walvoil Solenoid Spool Control
Walvoil DFE080
Stackable solenoid spool control
The Walvoil DFE series flow diverters are used to connect several circuits by different way number configuration with a stackable concept.
Operational Type: Electric
Ways n.: 6 - 8 - 10
Max. Pressure bar - (psi): Up to 315 (4600)
Flow l/min - (US gpm): 25 (6,6)
Walvoil DFE100
Stackable solenoid spool control
The Walvoil DFE series flow diverters are used to connect several circuits by different way number configuration with a stackable concept.
Operational Type: Electric
Ways n.: 6 - 8 - 10
Max. Pressure bar - (psi): Up to 315 (4600)
Flow l/min - (US gpm): 50 (13,2)
Walvoil DFE140
Stackable solenoid spool control
The Walvoil DFE series flow diverters are used to connect several circuits by different way number configuration with a stackable concept.
Operational Type: Electric
Ways n.: 6 - 8 - 10
Max. Pressure bar - (psi): Up to 315 (4600)
Flow l/min - (US gpm): 80 (21)
‘When you choose Walvoil Diverter Valves, you're selecting a solution engineered to enhance efficiency, minimize downtime, and maximize the lifespan of your hydraulic systems.’
To enquire about the Walvoil Diverter Valve range, please contact VHS Hydraulic Components on: 0114 276 4430 / E: info@www.hydraulic-components.net or visit our website at: https://www.hydraulic-components.net/
