Do your Filter Elements need changing?

DISCOVER BOSCH REXROTH’S RANGE OF FILTER ELEMENTS


As we approach the end of 2020, it is time to start planning ahead. Does your factory or workshop shut down over the Christmas period? Will you be undertaking any planned maintenance work during this time? How often do you change your hydraulic filters? Do your hydraulic filter elements need replacing?

Oil is the central component of every hydraulic system. One of the most common causes for the failure of a system is oil contamination.


Did you know? More than ¾ of all problems can be traced back to contaminated oil. Monitoring oil cleanliness is therefore the most important factor in preventing system failures.

Bosch Rexroth filters and cleaning systems for hydraulic oil and lubricating oil applications ensure ideal operating conditions throughout the entire life cycle. Bosch Rexroth offers a complete portfolio consisting of Bosch Rexroth Filters and interchangeable Bosch Rexroth Filter Elements with the latest technology for highest performance. Covering each application Bosch Rexroth has the right solution for the filtration of hydraulic fluids, lubricants and industrial liquids.

Bosch Rexroth’s wide range of filters ensures optimum operating conditions over the entire lifecycle, thus reducing the total cost of ownership. Bosch Rexroth continually complies with international standards, this opens up the technical advantages of Bosch Rexroth Filter technology for any application, irrespective of the original equipment manufacturer.

The filter element is the central component of industrial filters. The actual filtration process takes part in the filter element. The main filter variables, such as retention capacity, dirt holding capacity and pressure loss are determined by the filter elements and the filter media used in them.

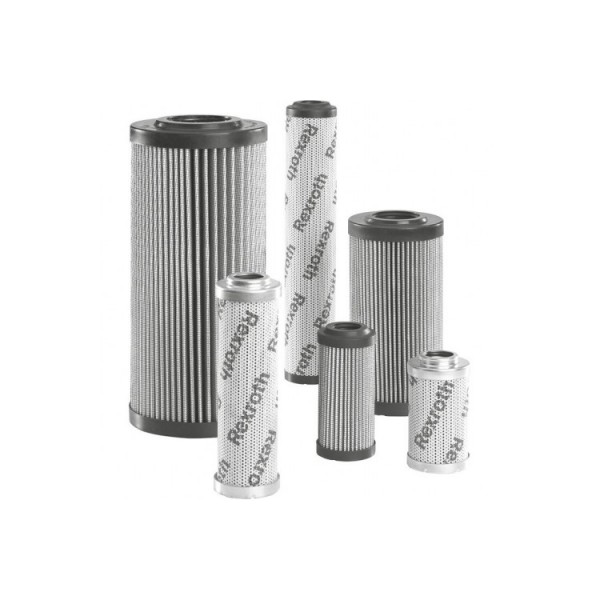

VHS Hydraulic Components supply a vast range Bosch Rexroth Filter Elements, including Type 1, 2, 2.Z, 4, 6, 9, 10, 16, 18 and 46.

Bosch Rexroth Filter Element Type 2., according to DIN 24550 and Rexroth standard

Key features include:

• Size 0040 … 2500

• Pressure differential 30 bar or 60 bar

• Filter rating from 1 μm


Bosch Rexroth Filter Element Type 2., according to DIN 24550 and Rexroth standard

Key features include:

• Size 0040 … 1000

• Pressure differential 30 bar, 160 bar or 330 bar

• Filter rating from 1 μm



Bosch Rexroth Filter Element Type 2.Z, according to Rexroth standard
Key features include:

• Size 025 … 125

• Differential pressure 330 bar

• Filter rating from 3 μm

• For sandwich plate filter 320PZR

Bosch Rexroth Filter Element Type 4., according to Rexroth standard
Key features include:

• Size 06 … 20

• Pressure differential 30 bar

• Filter rating from 1 μm

• For inline filters 20 L

Bosch Rexroth Filter Element Type 6,. according to Rexroth standard

Key features include:

• Size 56 … 560

• Filter rating from 10 μm

• For housing suction filters SE


Bosch Rexroth Filter Element Type 9., for installation in Hydac filter housings

Key features include:

• Nominal size 0060 ... 0660

• Nominal size 0030LA ... 1500LA

• Differential pressure 30 bar or 210 bar

• Filter rating from 1 μm

• Replacement for Hydac D filter elements

Bosch Rexroth Filter Element Type 10., for the installation into Hydac filter housings

Key features include:

• Nominal size 0060 ... 2600

• Nominal size 0030LA ... 2600LA

• Pressure differential 30 bar

• Filter rating from 1 μm

• Replacement for Hydac R filter elements

Bosch Rexroth Filter Element Type 16., for the installation in Pall filter housings

Key features include:

• Size 0008 … 9901

• Differential pressure 10 bar, 20 bar or 210 bar

• Filter rating from 3 μm

Bosch Rexroth Filter Element Type 18., for installation in Filtration Group filter housing (previously Mahle Industriefiltration)

Key features include:

• Size 10 ... 940

• Differential pressure 10 bar ... 210 bar

• Filter rating from 3 μm

Bosch Rexroth Filter Element Type 46., CELLUDISC for microfiltration

Key features include:

• Size 10

• Maximum differential pressure 4 bar

• Filter rating: 2 μm and 10 μm

• Operating temperature +0 … +80 °

It is important that you change your hydraulic filter elements on a regular basis to prevent contamination and extensive downtime.

Do you need to replace your Filter Element, but the original manufacturer is not Bosch Rexroth? At VHS Hydraulic Components we can cross reference your existing part or model number to find the perfect Replacement Filter Element from Bosch Rexroth.


WE ARE A BOSCH REXROTH DISTRIBUTOR

To enquire about Bosch Rexroth Filter Elements, please contact VHS Hydraulic Components on: 0114 276 4430 / E: info@www.hydraulic-components.net or visit our website at: https://www.hydraulic-components.net/

VHS Hydraulic Components is Bosch Rexroth UK distributor. VHS Hydraulic Components supplies Bosch Rexroth Filter Elements, Bosch Rexroth A10VSO Axial Piston Pumps, Bosch Rexroth A10VO Axial Piston Pumps, Bosch Rexroth A18VO Axial Piston Pumps, Bosch Rexroth A17FO Fixed Displacement Piston Pumps, Bosch Rexroth AZ-PF Gear Pumps, Bosch Rexroth Internal Gear Pumps, Bosch Rexroth PV7 Vane Pumps, Bosch Rexroth CETOP 3 & 5 Valves, Bosch Rexroth Bladder Accumulators (HAB), Bosch Rexroth Diaphragm Accumulators (HAD) and Bosch Rexroth HED Pressure Switches.
