Ikron Return Filters protect the pump and the hydraulic circuit from the fluid contaminant returning back to the tank.
Why should I use a Return Filter?
Return Line Filters are designed to filter the oil that is returning to the reservoir under low pressure, therefore, ensuring the oil that enters the reservoir is already cleaned to the required ISO4406 contamination level.
Return Line Filters are popular in hydraulic systems because they are a reliable and cost-effective way of filtering contamination from the operating fluid, which flows back to the tank from the hydraulic system.
Discover the Ikron Return Filter Range:
Ikron HF502/508
Tank Top Filters to protect the circuit return line flows.
Maximum flow: 264.1 gpm (1000 l/min)
Maximum working pressure: 116 psi (8 bar)
Filter media:
- Microfiber 3, 6, 10, 25 micron
- Reinforced paper 10, 25 micron
- Zinc-plated steel wire mesh 90 micron
- Stainless steel wire mesh 25, 60, 125, 250 micron
Ikron HF502 Return Filters are mounted in the return line of the circuit and protect the system components from contaminant particles.
They are available in different configurations and dimensions and offer various accessories such as diffusers and tube extensions, in order to avoid the creation of bubble and foam inside the tank.
Technical Features include:

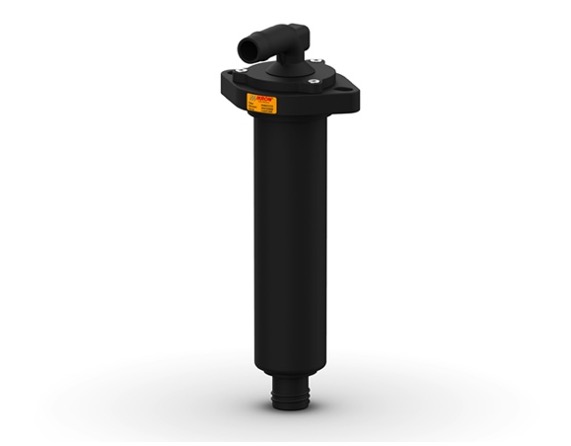

Ikron HF532
Tank Top Filters to protect the circuit return line flows.
360° adjustable connection.
Maximum flow: 13 gpm (50 l/min)
Maximum working pressure: 116 psi (8 bar)
Filter media:
- Microfiber 10, 25 micron
- Antistatic Microfiber 10, 25 micron
Ikron HF532 Return Filters are mounted in the return line of the circuit and protect the system components from contaminant particles.
The housing is entirely plastic, guaranteeing lightness and the “AF” microfiber and conductive plastics media minimises the risk of electric discharges inside the element. Wide range of accessories and clogging indicators.

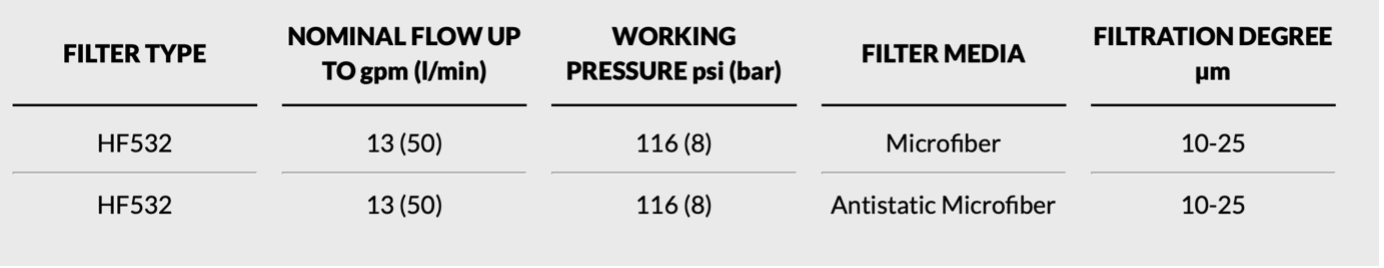

Technical Features include:

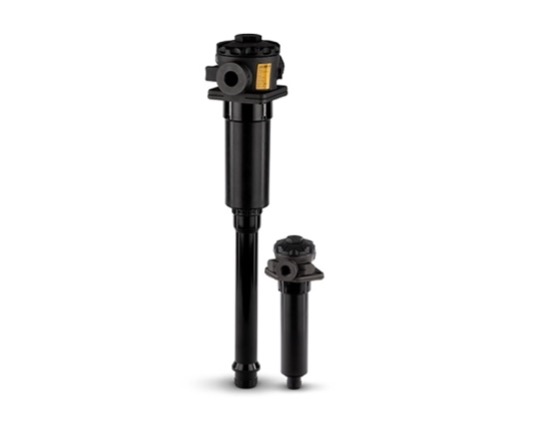

Ikron HF547
Tank Top Filters to protect the circuit return line flows.
10 or 40 micron air breather on board
Maximum flow: 52.8 gpm (200 l/min)
Maximum working pressure: 116 psi (8 bar)
Filter media:
- Microfiber 3, 6, 10, 25 micron
- Reinforced paper 10, 25 micron
- Stainless steel wire mesh 25, 60, 125, 250 micron
- Zinc-plated steel wire mesh 90 micron
Ikron HF547 Return Filters are mounted in the return line of the circuit and protect the system components from contaminant particles.
The anodized aluminium body ensures protection against weather conditions and wear, while the air filter allows the air exchange between the outer environment and the tank.

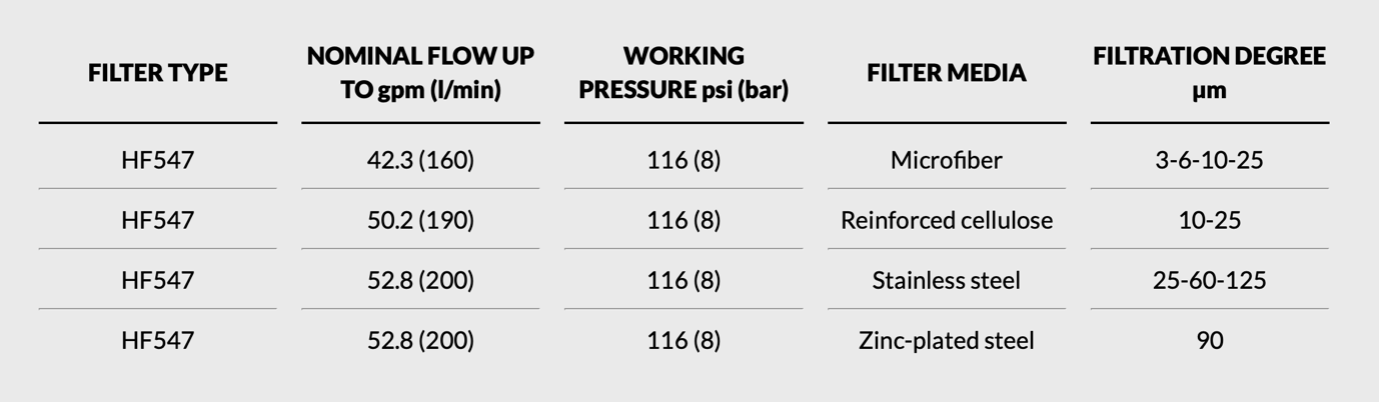

Technical Features include:

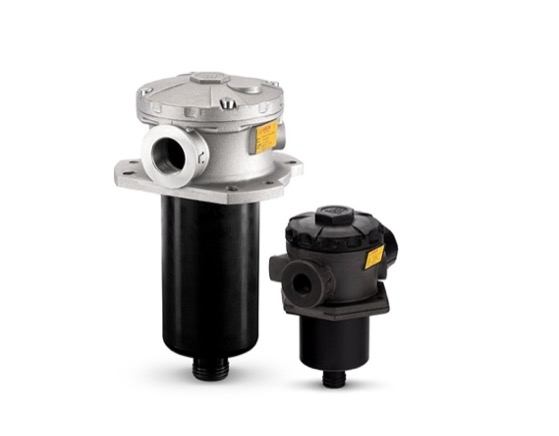

Ikron HF554
Tank top filters to protect the circuit return line flows.
10 or 40 micron air breather on board
Maximum flow: 166.4 gpm (630 l/min)
Maximum working pressure: 116 psi (8 bar)
Filter media:
- Microfiber 3, 6, 10, 25 micron
- Reinforced paper 10, 25 micron
- Stainless steel wire mesh 25, 60, 125, 250 micron
- Zinc-plated steel wire mesh 90 micron
Ikron HF554 Return Filters are mounted in the return line of the circuit and protect the system components from contaminant particles.
Accessories such as tube extensions, diffusers and level dipsticks are available.

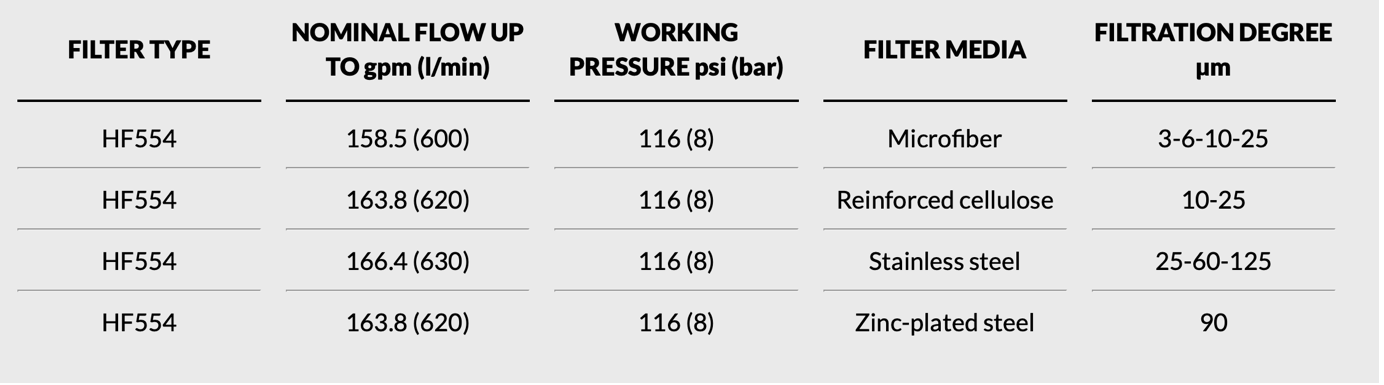

Technical Features include:
Ikron HF570 / 575 / 578
Tank Top Return Line Filters with special in to out filtration flow.
Maximum flow: 317 gpm (1200 l/min)
Maximum working pressure: 116 psi (8 bar)
Filter media:
- Microfiber 3, 6, 10, 25 micron
- Cellulose 10, 25 micron
- Stainless steel wire mesh 25, 60, 125, 250 micron
- Zinc-plated steel wire mesh 90 micron
Ikron HF570/575/578 Return Filters are mounted in the return line of the circuit and protect the system components from contaminant particles.
They provide an in to out filtration flow. The internal magnetic set ensures the fluid metal contaminant particles capture. They are usually combined with fluid speed-decelerating diffusers.
Technical Features include:
Ikron Cross Reference Chart
Ikron provides complete interchangeability with the major manufacturers in the field. Use the link below from Ikron to access the cross-reference chart tool.
https://ikron.it/en/cross-reference-chart-tool/
Conclusion
Ikron Fluid Filtration from Casappa prides itself in providing accurate filtration that expands the life of all components and improves the overall efficiency of your hydraulic system. Filters represent a strategic component for safeguarding the hydraulic circuit. Ikron has been inspired since its birth by the procedures dictated by the ISO 9001 Standard, a guarantee of the care and professionalism that distinguishes its production, from the project to the delivery of the products.
