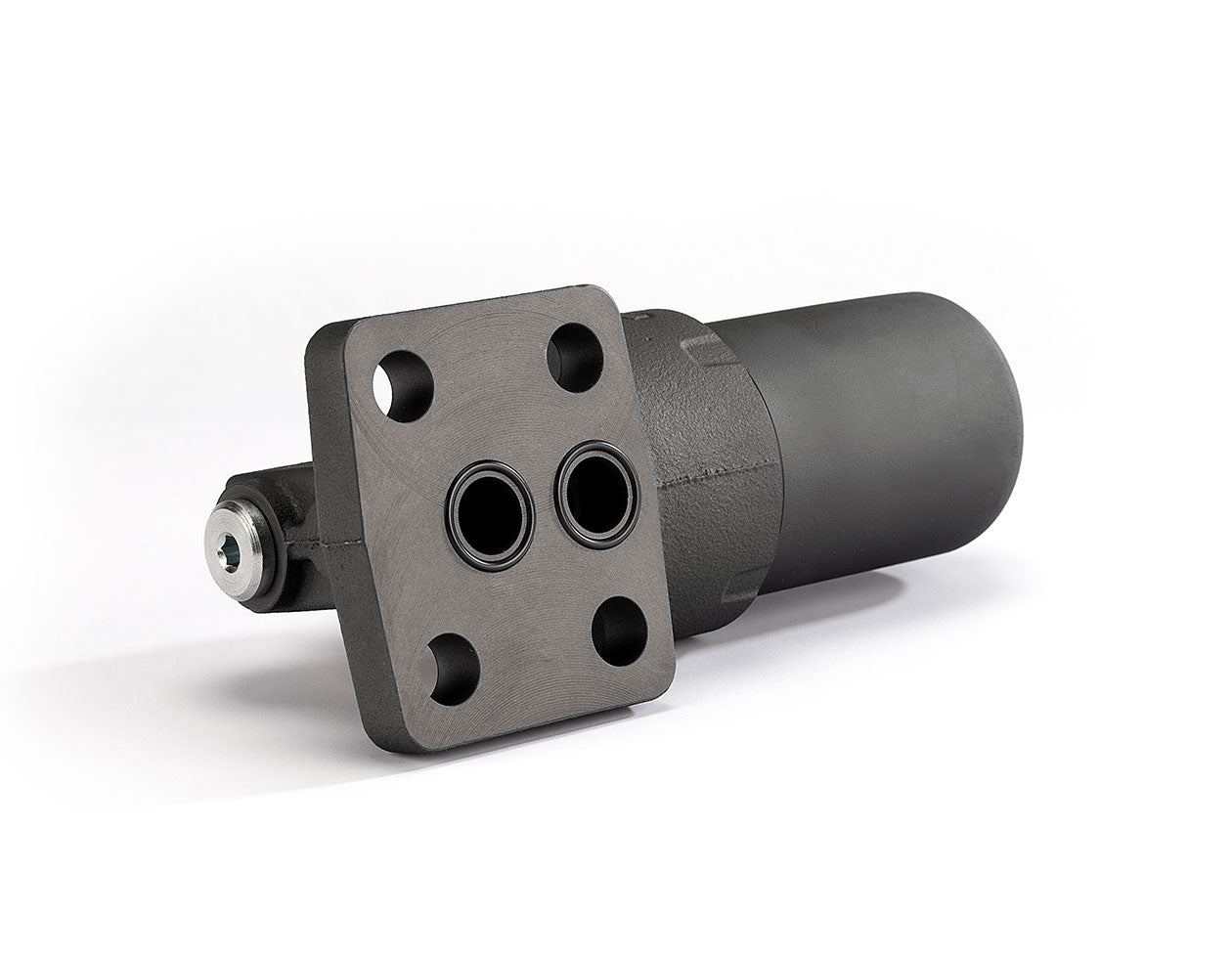

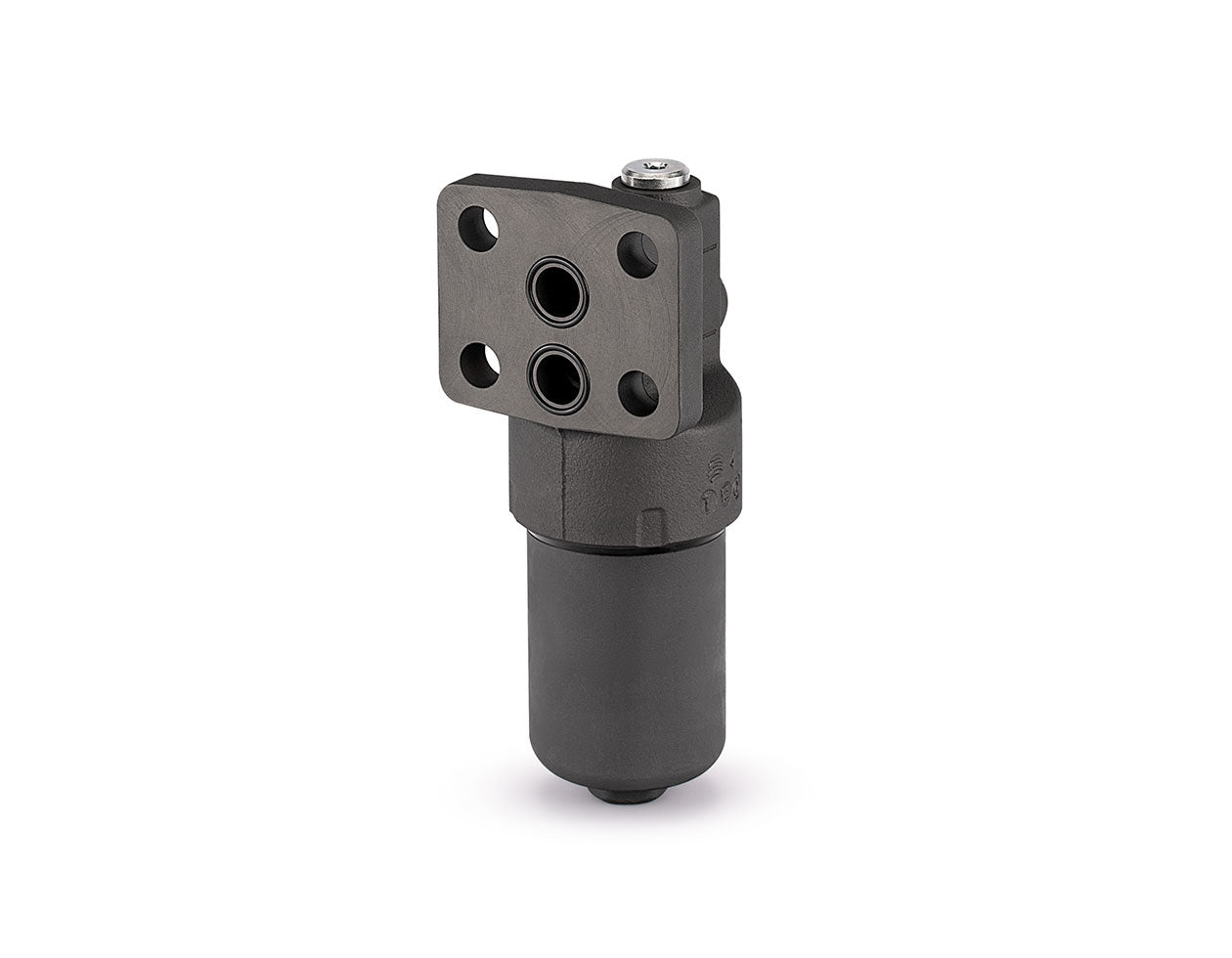

Ikron HF735 High Pressure Manifold Mounted Filter
The HF735 filter series is designed for connection to the pressure line of hydraulic circuits, providing essential protection for system components against contaminant particles.
Standard filters come with a by-pass valve calibrated at 87 psi (6 bar). They support a flow capacity of up to 40 US gpm (150 l/min) and a maximum working pressure of 4640 psi (320 bar). The filtration system features a high-efficiency multi-layer design and allows for direct mounting on manifolds for seamless integration.
For applications requiring maximum system protection, such as servo drives or proportional controls, the filters are available in HC versions, which feature highly resistant filtering elements and do not include a by-pass valve.
- 10 Micron
- Manifold Mounted
- 320 Bar Max Pressure
- 135 LPM
Full Description
HF735-30.223-AS-FG010-LC-B60-B-XA-H
